FEATURES:
Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
Supports DDR4 Memory, up to 4600(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
Audio Boost: Reward your ears with studio-grade sound quality
SPECIFICATIONS:
Socket: AMD Socket AM4
CPU (Max Support): Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series process
Chipset: AMD A520 Chipset
DDR4 Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC Mode
Memory Channel: Dual
DIMM Slots: 2
Max Memory (GB): 64
PCI-E x16: 1
PCI-E GEN: Gen3
PCI-E x1: 2
SATAIII: 4
M.2 Slot: 1
TPM (Header): 1
RAID: 0/1/10
LAN: Realtek RTL8111H Gigabit LAN
USB 3.2 ports (Front): 2(Gen 1, Type A)
USB 3.2 ports (Rear): 4(Gen 1, Type A)
USB 2.0 ports (Front): 4
USB 2.0 ports (Rear): 2(Type A)
Serial Ports(Front): 1
Audio ports (Rear): Realtek ALC892/ALC897 Codec
DisplayPort: 1
HDMI: 1
VGA: 1
DirectX: 12
Form Factor: M-ATX
Operating System: Support for Windows 10 64-bit

What's in the box

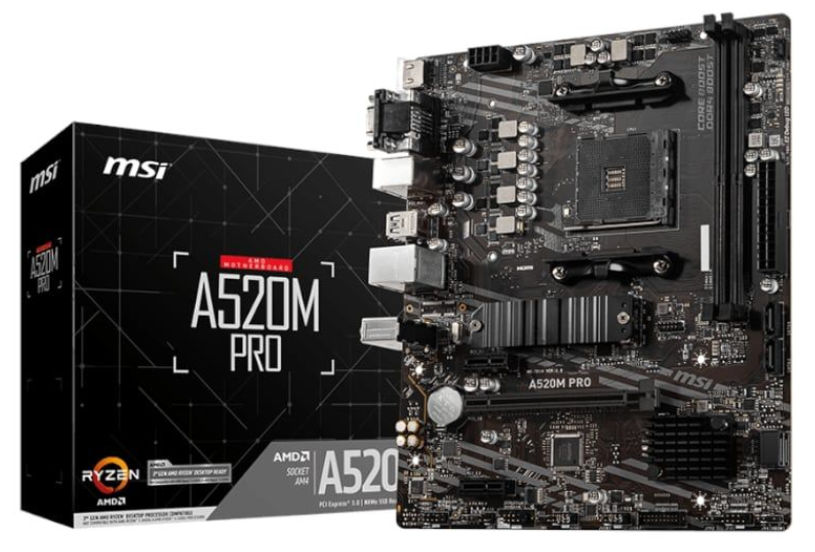

MSI A520M PRO AM4 mATX Motherboard - Black x1
SATA cables x2
I/O Shield x1
Driver DVD x1
Quick Install Guide x1
